KALPANA ENGINEERING WORKS
GST : 24AASFK0934B1ZL

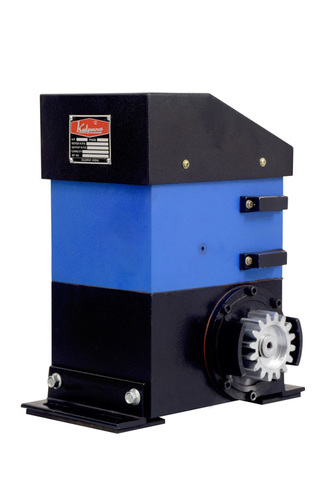

1440 RPM Sliding Gate Gear Motor

25500.00 INR/Piece

Get a Price/Quote

Product Details:

Voltage 220 Volt (v)
Poles Number 4
Ambient Temperature 120 Celsius (oC)
Rated Frequency 50 Hertz (HZ)
Product Type Other
Frequency (MHz) 50 Hertz (HZ)
Protect Feature Waterproof
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

1440 RPM Sliding Gate Gear Motor Price And Quantity

Price 25500.00 INR/Piece
Minimum Order Quantity 1 Piece

1440 RPM Sliding Gate Gear Motor Product Specifications

Frequency (MHz) 50 Hertz (HZ)
Weight 25 Kilograms (kg)
Rated Frequency 50 Hertz (HZ)
Voltage 220 Volt (v)
Product Type Other
Poles Number 4
Ambient Temperature 120 Celsius (oC)
Starting Type Electric Start
Warranty 1 Year
Power 220 Volt (v)
Speed 48 RPM
Dimension (L*W*H) 200x155x330 Millimeter (mm)
Protect Feature Waterproof
Color Blue
Phase Single Phase
Efficacy IE1

1440 RPM Sliding Gate Gear Motor Trade Information

Supply Ability Per Week
Delivery Time 01 Week
Packaging Details Corrugated Box With Thermocol cushion inside
Main Domestic Market Gujarat All India

Product Description

SG-1003K GATE MOTOR DATA
GATE Max.WEIGHT	1000 Kg
GATE SPEED (Mtr./Min)	9 Mtr/Min
Max.TORQUE	1000Kg/Cm
POWER SUPPLY(50Hz)	AC-430 v
MOTOR RPM	1440 RPM
Max.Amps.	0.6 Amp.
INSTALLATION CLASS	IP-44
REDUCTION RATIO	30/1
OVERALL SIZE(LXWXH)mm	200X155X330
RACK & PINION	Module-4
THERMAL PROTECTION	120 C
LIMIT SWITCH	MAGNETIC
OIL GRADE	SAE-90
OIL QUANTATY	600 Ml
BODY METAL	ALUMINIUM
MOTOR WEIGHT	18 Kg
SOFT START	YES
ELECTRONIC BRAKE	YES
DC MAGNATIC BRAKE	ON DEMAND
AUTO HALF OPENING	Possible On Demand
AUTO CLOSE	Possible On Demand
PHOTOCELL	Possible On Demand
REMOTE	Possible On Demand
Wi-Fi & BLUETOOTH	Possible On Demand
AUTO & MANUAL MODE	Possible On Demand
